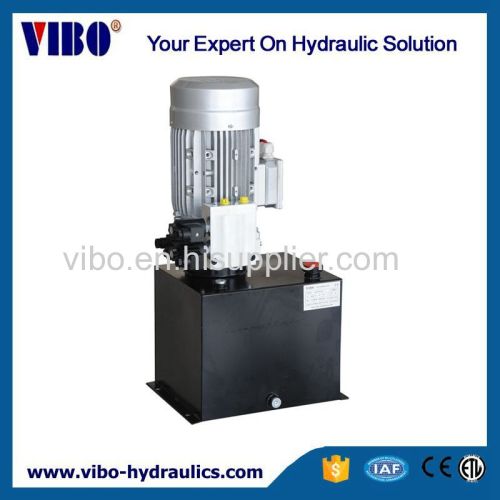

Specially designed for scissor car lift, adopt CMC manifold, with the function of power lift and gravity lowering, flow control valve or compensated valve control the lowering speed, two pcs double-way-check solenoid valves control two group single action cylinder.

Unit Specification

Center manifold:   CMC

Motor: 380V 2.2Kw 2850rpm 3 ph 50Hz

Pump: 2.0cc/rev.

Relief: 20 Mpa

Oil ports: G1/4"

Tank:15L

Mounting: Vertical

Rpcv: adjustable
